Certificate Based Authentication¶

Unified Diagnostic Service (UDS) : Service 0x29¶

Used for diagnostic tester authentication.

Split in to two different sections Authentication with PKI Certificate Exchange (APCE) and Authentication with Challenge-Response

Uses Asymmetric cryptography

Security Access : UDS Service0x27¶

Uses symmetric cryptography

PKI (Public Key Infrastructure)¶

PKI is an asymmetrical cryptographic system which uses a pair of mathematically related keys to send and receive message in a secure way. A message encrypted with private key can only be decrypted using public key and Vice versa is also feasible.

Digital Certificates¶

Digital certificates utilize the public key infrastructure (PKI). A PKI system has two main components: a certificate authority (CA) and certificates. These certificates will be used to exchange the public keys.

The digital certificates are used for security reasons and many use cases:

Secure over-the-air updates (OTA) and code signing.
Transport Layer Security (TLS).
Secure diagnostics and service 0x29.
Vehicle to Grid (V2G) technology.
Vehicle to everything (V2V) technology.
Vehicle to everything (V2X) technology.

Certificate consist of 3 main sections

certificate data
Algorithm used for signature.
Signature.

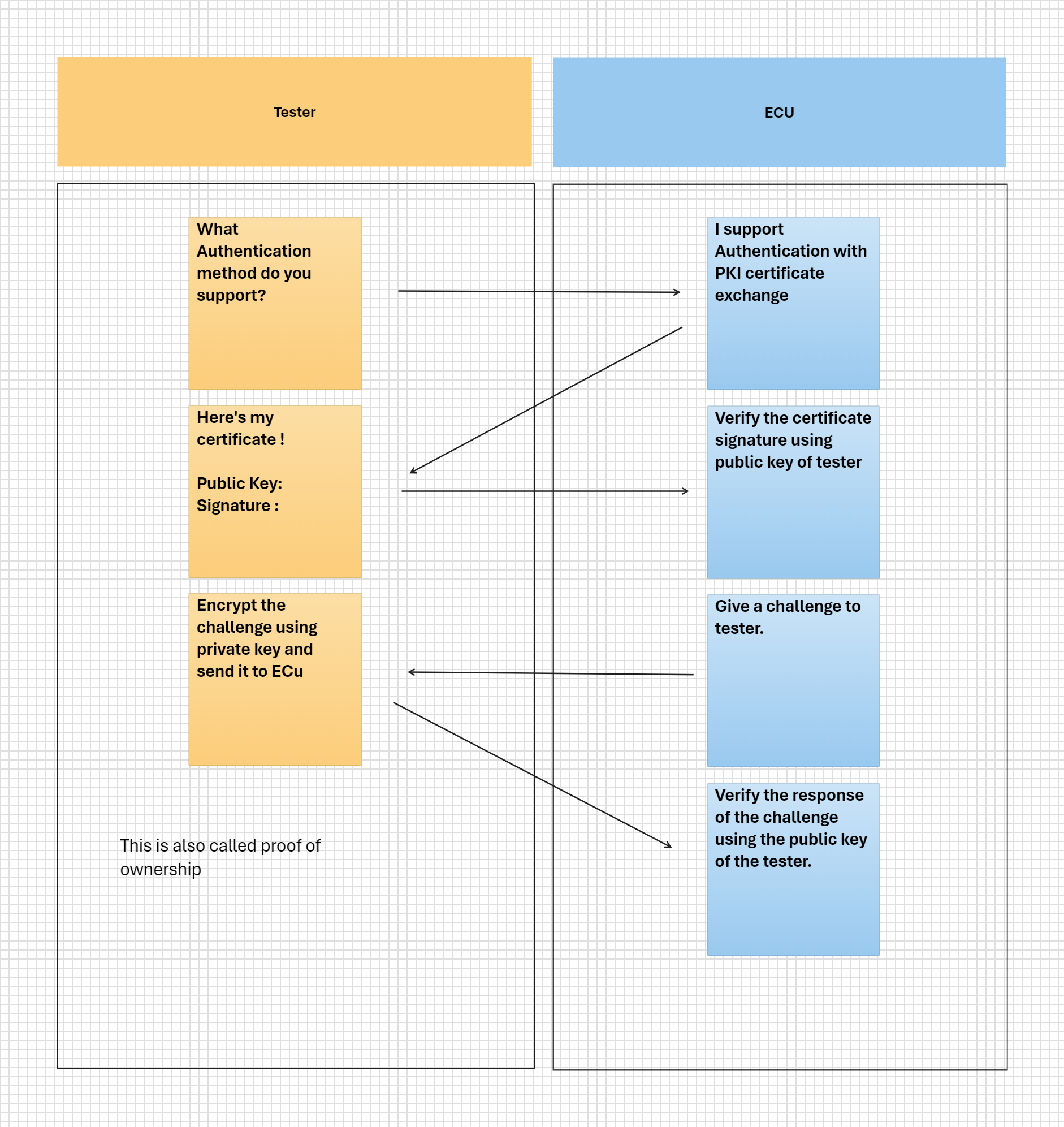

ECU Authentication with PKI Certificate Exchange¶

Proof of ownership¶

When an ECU receives the certificate, it doesn't know if the tester owns the private key. So it sends challenge to the tester to encrypt it using the testers private key. ECU verifies the received response using testers public key, hence verifying the ownership.

Proof of ownership can be bidirectional if needed to protect the tester from ECU (Some systems use this kind of proof of ownership). In this case the certificate sent by the tester consists of public key, signature and a challenge to the ECU. ECU verifies the sends its certificate to the tester with public key, signature and response to the challenge

Creating a certificate chain of trust using OpenSSL¶

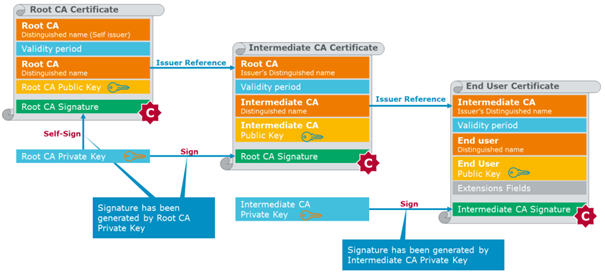

In most ECUs that contain certificates, the certificates are organized in a hierarchical structure known as a certificate chain. The chain starts with the root CA certificate, which is self-signed and acts as the trust anchor for the complete chain. One or multiple Intermediate CAs certificates can follow the root CA certificate. The Intermediate CAs certificates are then used to sign and issue end entity certificates.

Create RootCA¶

Openssl needs to be installed. openssl.cnf can be found in the installed folders.

openssl genrsa -out CA_KeyFile.pem 2048 # generate private key
openssl req -new -x509 -days 365 -sha256 -key CA_KeyFile.pem -config openssl.cnf -out CA_Certificate.crt
openssl x509 -in CA_Certificate.crt -text -noout # check certificate content

Create intermediate certificate¶

openssl genrsa -out Inter_KeyFile.pem 2048 # generate private key

# generate CSR consisting of public key of Intermediate certificate.
openssl req -new -sha256 -key Inter_KeyFile.pem -config openssl.cnf -out Inter_CSR_Certificate.csr

# Using the csr generate the certificate
openssl x509 -days 365 -req -in Inter_CSR_Certificate.csr -CA CA_Certificate.crt -CAkey CA_KeyFile.pem -CAcreateserial -out Inter_Certificate.crt

Create end user certificate¶

openssl genrsa -out User_KeyFile.pem 2048 # generate private key

# generate csr consisting of public key
openssl req -new -sha256 -key User_KeyFile.pem -config openssl.cnf -out User_CSR_Certificate.csr

openssl x509 -days 365 -req -in User_CSR_Certificate.csr -CA Inter_Certificate.crt -CAkey Inter_KeyFile.pem -CAcreateserial -out User_Certificate.crt

ODX¶

What is ODX?¶

Open Diagnostic data Exchange - ISO 22901 - 1

ODX-D is diagnostic data. most commonly used odx file.

ODX-V vehicle information

ODX-F Software update / Flash information. Flashing an ECU is nothing but a software update to the ECU. ODX-F only tells about the data that needs to be flashed. Its the job of tester tool to know which request to send in what order.

ODX-E ECU configuration data.

ODX-FD Function oriented Diagnostics

Between ODX files and within ODX files linking, Referencing and Inheritance can be seen. Understanding of which is very essential to work on ODX data.

PDX Packaged ODX containers has various different ODX files

ECU - > Electronic control unit

New generation of ECus are HCPs High performance computing platforms

AUTOSAR¶

For HCPs -> AUTOSAR Adaptive platform

for other ECUs -> AUTOSAR classic platform

File formate used is ARXML

HCPs/HPCs are GPUs that have high performance compared to ECUs. HPCs have data centric capabilities while the ECUs have hardware centric capabilities. A vehicle will have both HPC and ECU for both hardware and data work together.
